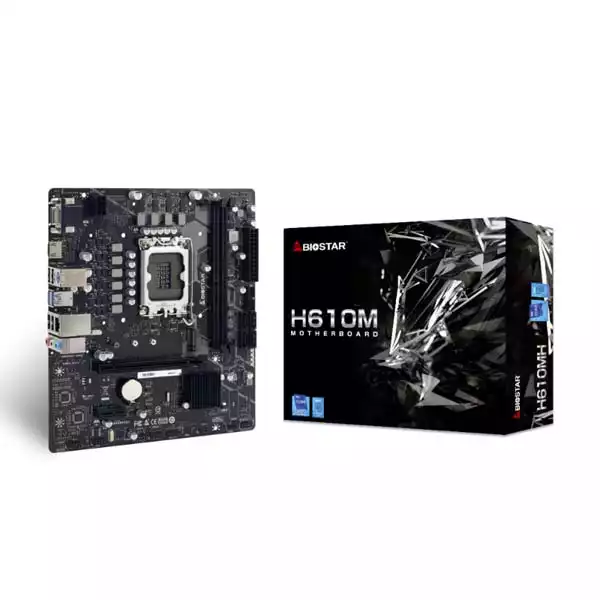

Matična ploča 1700 Biostar H610MH VGA/HDMI M.2

SKU: H610MH Categories: , Tag:

10.990,00 RSD

10 in stock

Dodaj na listu željaUkloni sa liste želja
Dodaj na listu želja

Tip procesora Intel
Čipset Intel® H610
Format ploče Micro ATX
Podržani procesori Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
Podržana memorija DDR4
Memorija Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
Multi-GPU podrška 1x PCIe 3.0 x1 Slot
1x PCIe 4.0 x16 Slot
Integrisana grafička karta Supports DX12
Supports HDCP
Storage -- Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA):
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD
Mrežna karta Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Zvučna karta ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
Konektori na zadnjoj strani 1 x PS/2 Keyboard/Mouse Port
1 x HDMI
1 x VGA Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
Interni konektori 4 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
